- Appareil photo numérique compact à visée télémétrique sans moniteur
- Capteur CMOS BSI plein format avec technologie triple résolution (60 / 36 / 18 MP)

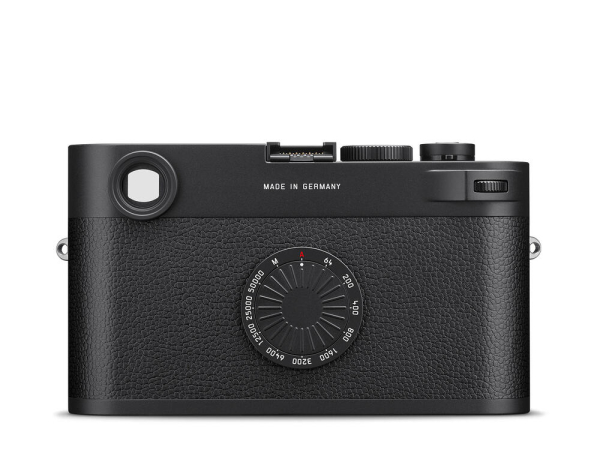

- Grande molette de réglage ISO à l'arrière
- Design réduit sans logo Leica sur la face avant
- Fabriqué en Allemagne
- Connexion transparente avec l'application Leica FOTOS
- Leica Content Credentials
- Mémoire interne de 256 Go
- Connexion USB-C
- Certifié « Made for iPhone and iPad ».
Un cœur numérique. Une âme analogique.
Le Leica M11-D allie les sensations de la photographie analogique aux multiples possibilités du monde numérique. En termes de design et de technique, il se concentre résolument sur le processus photographique. Sans écran et sans distraction, il se concentre sur les caractéristiques élémentaires de la création d'images : composition, diaphragme, vitesse d'obturation et ISO. La molette de réglage ISO mécanique située à l'arrière de l'appareil renforce l'expérience analogique. Avec sa technologie d'authenticité basée sur le matériel et les Leica Content Credentials conformes à la Content Authenticity Initiative (CAI), il crée la confiance dans les contenus d'images numériques.
Le M11-D fait valoir ses atouts numériques avec l'application Leica FOTOS. Connectée à l'appareil mobile par Bluetooth ou par câble, elle s'intègre parfaitement dans le flux de travail numérique et permet des réglages individuels supplémentaires qui, une fois enregistrés, sont repris durablement par l'appareil photo.
| Designation |
Leica M11-D |
||||||||||||||||||||||||||||
| Camera type |
Digital system camera with rangefinder |
||||||||||||||||||||||||||||
| Buffer memory |
3 GB DNG™: 15 shots JPG: > 100 shots |
||||||||||||||||||||||||||||
| Storage medium |
UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card (SDXC cards up to 2TB) Internal memory: 256GB |
||||||||||||||||||||||||||||
| Material |
Black: full-metal housing made of magnesium and aluminum, leatherette cover |
||||||||||||||||||||||||||||
| Lens mount |
Leica M bayonet with additional sensor for 6-bit encoding |
||||||||||||||||||||||||||||
| Operating conditions |
0 °C to +40 °C |
||||||||||||||||||||||||||||
| Interfaces |
ISO accessory shoe with additional control contacts for Leica flash units and Leica Visoflex2 viewfinder (optional accessory) USB 3.1 Gen1 Type-C |
||||||||||||||||||||||||||||
| Tripod thread |
A 1⁄4 DIN 4503 (1⁄4”) with stainless steel in the base |
||||||||||||||||||||||||||||
| Dimensions |
(width x depth x height) approx. 147 x 38,5 x 80mm |
||||||||||||||||||||||||||||
| Weight |
approx. 539 g/457 g (with/without battery) |
||||||||||||||||||||||||||||
| SENSOR |
|||||||||||||||||||||||||||||
| Sensor size |
BSI CMOS sensor, pixel pitch: 3.76µm, 35mm: 9528x6328 pixels (60.3MP) |
||||||||||||||||||||||||||||
| Processor |
Leica Maestro series (Maestro III) |
||||||||||||||||||||||||||||
| Filter |
RGB color filter, no low-pass filter |
||||||||||||||||||||||||||||
| File formats |
DNG™ (raw data, loss-free compression), DNG + JPG, JPG (DCF, Exif 2.30) |
||||||||||||||||||||||||||||
| Image resolution |
The entire sensor surface will always be used irrespective of format and resolution. Digital Zoom 1.3x and 1.8x available (always based on L-DNG or L-JPG) |
||||||||||||||||||||||||||||
| File size |
JPG:depending on resolution and image content |
||||||||||||||||||||||||||||
| Color depth |
DNG™: 14 bit, JPG: 8 bit |
||||||||||||||||||||||||||||
| Color space |
sRGB |
||||||||||||||||||||||||||||
| VIEWFINDER |
|||||||||||||||||||||||||||||
| Viewfinder |
Large, bright-line rangefinder with automatic parallax compensation, suitable for -0.5dpt, optional corrective lenses available: -3 to +3dpt |
||||||||||||||||||||||||||||
| Display |
Four-digit digital display with items show on the top and bottom, Image field limiter: two lit frames: 35mm + 135mm, 28mm + 90mm, 50mm + 75mm (automatic switchover when lens is attached) |
||||||||||||||||||||||||||||
| Parallax compensation |
The horizontal and vertical difference between viewfinder and lens is compensated automatically in line with the relevant focus setting. Congruence of viewfinder and actual image. The size of the bright-line frame matches the distance: - at 2m: the exact sensor size of approx. 23.9x35.8mm - at infinity: (depending on focal length) approx. 7.3% (28mm) to 18% (135mm) - less than 2m: less than sensor size |
||||||||||||||||||||||||||||
| Viewfinder magnification |
0,73x (all lenses) |
||||||||||||||||||||||||||||
| Large-base rangefinder |
Split or superimposed image rangefinder shown as a bright field at the center of the viewfinder image |
||||||||||||||||||||||||||||
| SHUTTER |
|||||||||||||||||||||||||||||
| Shutter type |
Electronically controlled focal plane shutter and electronic shutter function |
||||||||||||||||||||||||||||
| Shutter speeds |
Mech. shutter: 60min to 1⁄4000s Electro. shutter function: 60s to 1⁄16000s Flash Synch: up to 1⁄180s Optional noise reduction via additional “black picture” (can be disabled) |
||||||||||||||||||||||||||||
| Shutter button |
Two-stage (Step 1: activation of the camera electronics including exposure metering and exposure lock, Step 2: release) |
||||||||||||||||||||||||||||
| Self-timer |
Delay time: 2s or 12s |
||||||||||||||||||||||||||||
| Drive Mode |
Single Continuous - Low Speed (3fps) Continuous - High Speed (4.5fps) Interval shooting Exposure Bracketing |
||||||||||||||||||||||||||||
| FOCUSING |
|||||||||||||||||||||||||||||
| Focus range |
70cm to ∞ |
||||||||||||||||||||||||||||
| Focus mode |
Manual (focus assist functions Magnification and Focus Peaking available) |
||||||||||||||||||||||||||||
| EXPOSURE |
|||||||||||||||||||||||||||||
| Exposure metering |
TTL (exposure metering through the lens), with working aperture |
||||||||||||||||||||||||||||
| Metering principle |
Exposure metering is done by the image sensor for all exposure metering methods (in Live View mode and in rangefinder mode) |
||||||||||||||||||||||||||||
| Exposure metering methods |
Spot, Center-Weighted, Multi-Field, Highlight-Weighted |
||||||||||||||||||||||||||||
| Exposure modes |
Aperture priority mode (A): automatic shutter speed control with manual aperture preselection Manual (M): manual setting for shutter speed and aperture |
||||||||||||||||||||||||||||
| Exposure compensation |
±3 EV in 1⁄3EV increments |
||||||||||||||||||||||||||||
| Automatic bracketing |
3 or 5 frames, graduations between shoots up to 3EV, in 1⁄3EV increments, additional optional exposure compensation: up to ±3EV |
||||||||||||||||||||||||||||
| ISO sensitivity range |
Auto ISO: ISO 64 (native) to ISO 50 000, also available in flash mode Manual: ISO 64 to ISO 50 000 |
||||||||||||||||||||||||||||
| White balance |
Automatic (Auto), Default (Daylight -5200K, Cloudy -6100K, Shadow -6600K, Tungsten -2950K, HMI-5700K, Fluorescent (warm) -3650K, Fluorescent (cool) -5800K, Flash -6600K), manual metering (Gray card), manual color temperature setting (Color Temperature, 2000K to 11,500K) |
||||||||||||||||||||||||||||
| FLASH |
|||||||||||||||||||||||||||||
| Flash unit connector |
Via the accessory shoe |
||||||||||||||||||||||||||||
| Metering principle |
Flash exposure metering is done by the image sensor for all exposure metering methods (in Live View mode and in rangefinder mode) |
||||||||||||||||||||||||||||
| Flash sync time |
: 1⁄180s, slower shutter speeds available, automatic switchover to TTL linear flash mode with HSS-compatible Leica system flash units if sync time is undercut |
||||||||||||||||||||||||||||
| Flash exposure metering |
Using center-weighted TTL pre-flash metering with Leica flash units (SF26, SF40, SF58, SF60, SF64) or with system-compatible flash units, remote controlled flash SFC1 |
||||||||||||||||||||||||||||
| Flash exposure compensation |
SF 40: ±2 EV in 1⁄2 EV increments SF 60: ±2 EV in 1⁄3 EV increments Other: ±3 EV in 1⁄3 EV increments |
||||||||||||||||||||||||||||
| Displays in flash mode (in the viewfinder only) |
Flash icon: connection of an external flash unit |
||||||||||||||||||||||||||||
| EQUIPMENT |
|||||||||||||||||||||||||||||
| WLAN |
The Leica FOTOS app is required to use the WLAN function. The Leica app is available from the Apple App Store™ or the Google Play Store™. 2.4 GHz/5GHz* dual band IEEE802.11 a/b/g/n/ac Wave2 WLAN (standard WLAN protocol), encryption method: WLAN-kompatible WPA™/WPA2™, access method: infrastructure mode |
||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| Bluetooth |
Bluetooth v4.2 BR/EDR/LE, BR/DR-channel 1-79, LE-channel 0-39 (2402–2480MHz)) |
||||||||||||||||||||||||||||
| GPS |
Geotagging via Leica FOTOS app using Bluetooth |
||||||||||||||||||||||||||||
| Menu languages |
English, German, French, Italian, Spanish, Russian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Korean |
||||||||||||||||||||||||||||
| POWER SUPPLY |
|||||||||||||||||||||||||||||
| Rechargeable battery (Leica BP-SCL7) |
Li-Ion (Lithium-Polymer) rechargeable battery, rated voltage: 7.4V / capacity: 1800mAh, Charging voltage/current: DC 1000mAh, 7.4V, operating conditions: +10°C to +35°C (charging) / +0°C to +40°C (discharged), manufacturer: Fuji Electronics (Shenzhen) Co., Ltd. made in China Approx. 700 shots (in accordance with CIPA Standard in rangefinder mode) |
||||||||||||||||||||||||||||
| Charger (Leica BC-SCL7) Optional accessories |
Input: USB-C DC 5V, 2A, output: DC 8.4V, 1A, operating conditions: +10°C to +35°C, manufacturer: Dee Van Enterprises Co., Ltd., made in China |
||||||||||||||||||||||||||||
| Swiching adapter (Leica ACA-SCL7) Optional accessories |
Input: AC 110V - 240V ~ 50/60Hz, 0.3A, output: DC 5V, 2A, operating conditions: +10°C to +35°C, manufacturer: Dee Van Enterprises Co., Ltd., made in China |
||||||||||||||||||||||||||||
| USB power supply |
When in standby mode or Off: USB charging function When On: USB power supply and intermittent charging |
